Manufacturer of Custom Triple Trees for any brand motorcycle! Domestic or imported!!
Put the custom front End you want on the motorcycle you have !

Kawasaki

if you don't see what you're looking for, Contact us. we can custom machine anything You need.

Below are examples of Kawasaki Custom Triple Trees we have manufactured for the listed models.

Drifter
Vulcan Classic - 2005 and later
Vulcan Classic - 2004 and earlier
Voyager
Voyager XII
Meanstreak
Vulcan Nomad - 1999 and earlier
Vulcan Nomad - 2000 and later
KZ 1000
Vulcan Nomad 2000 Classic
Vulcan Nomad 2000 A Standard

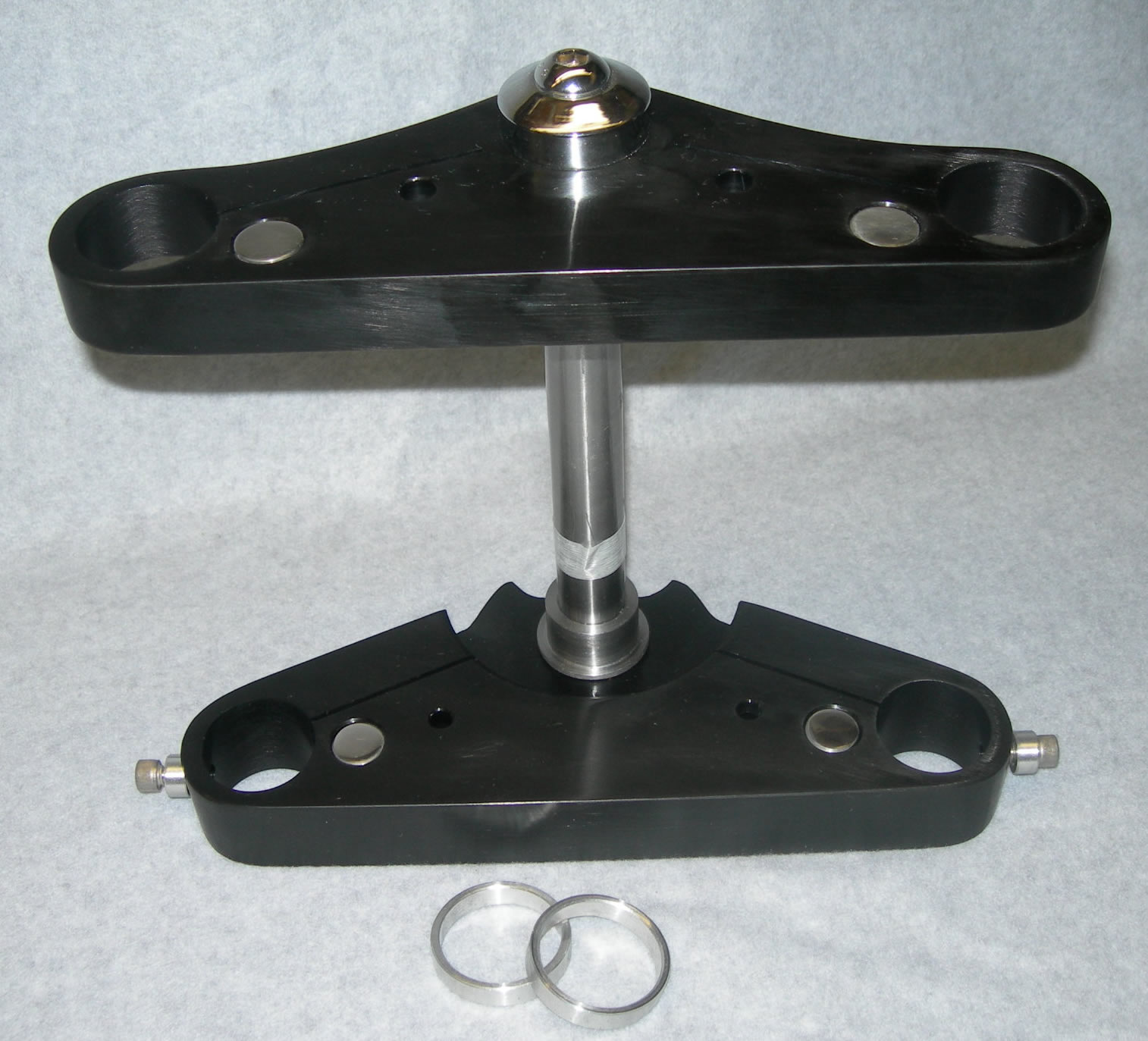

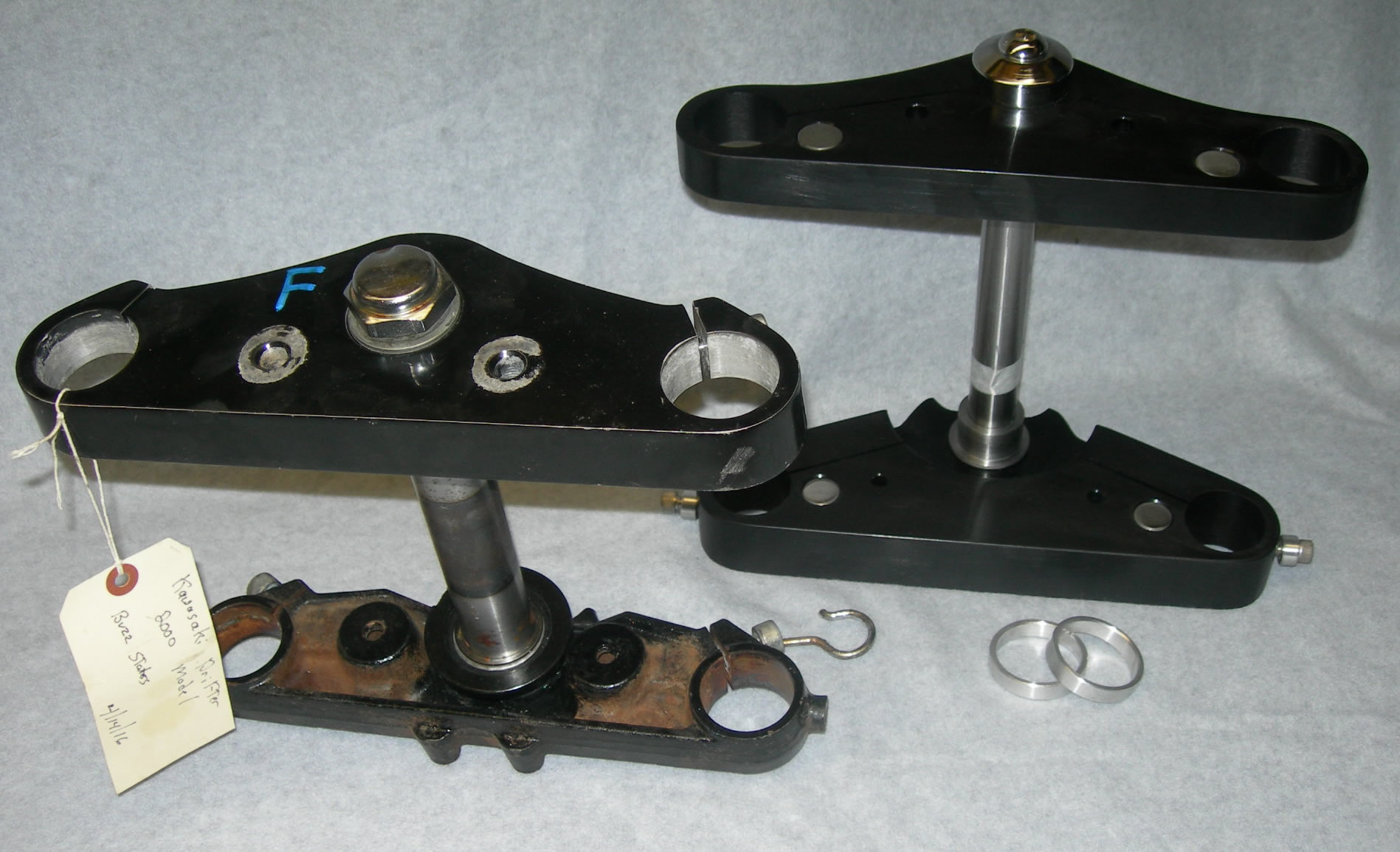

Kawasaki Drifter Custom Triple Trees
This model was popular through the 1990s and into the early 2000s. This set has a 5 degree rake built in. We have built this set for both steering improvement and customizing 2 wheel applications.

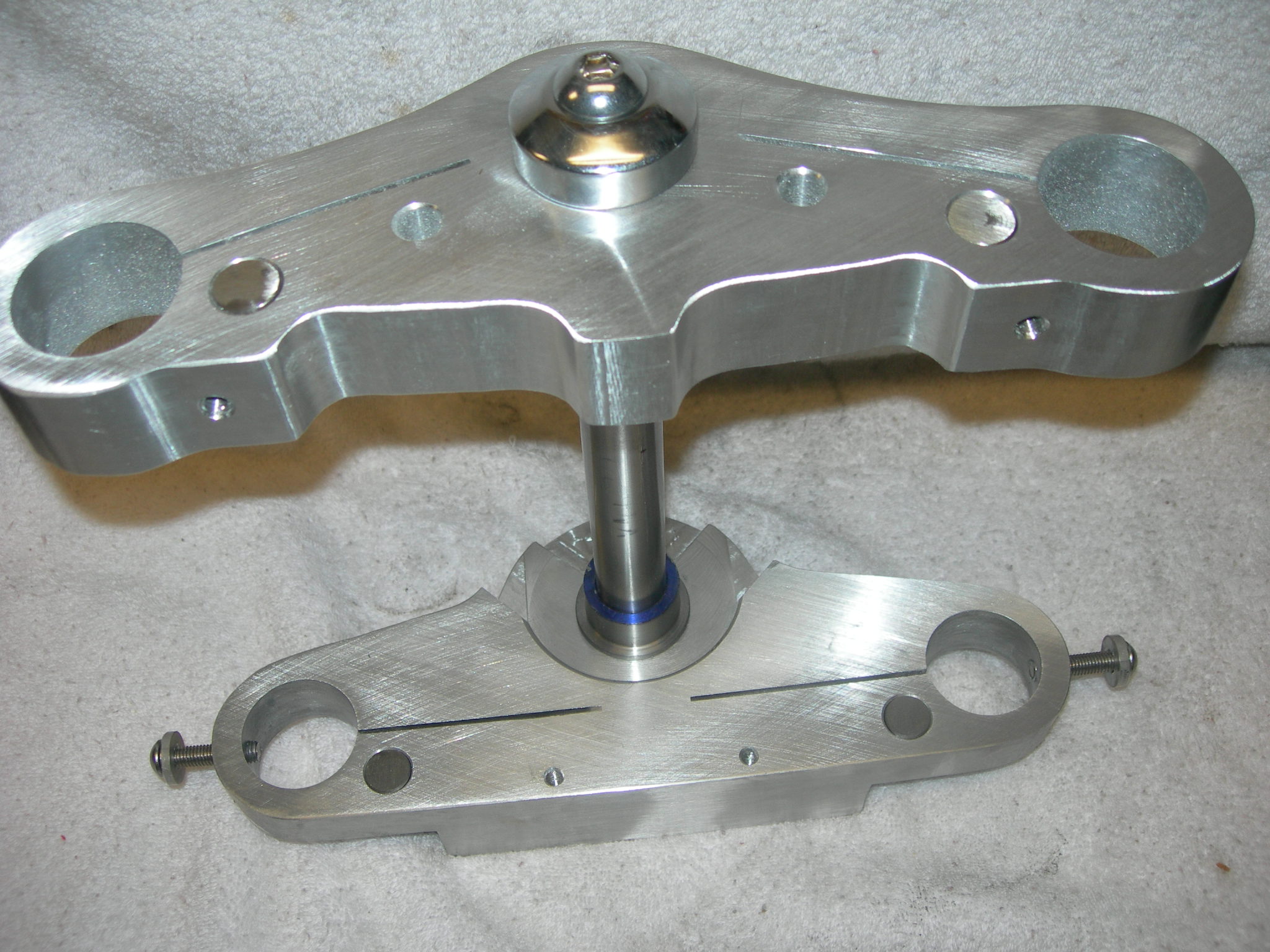

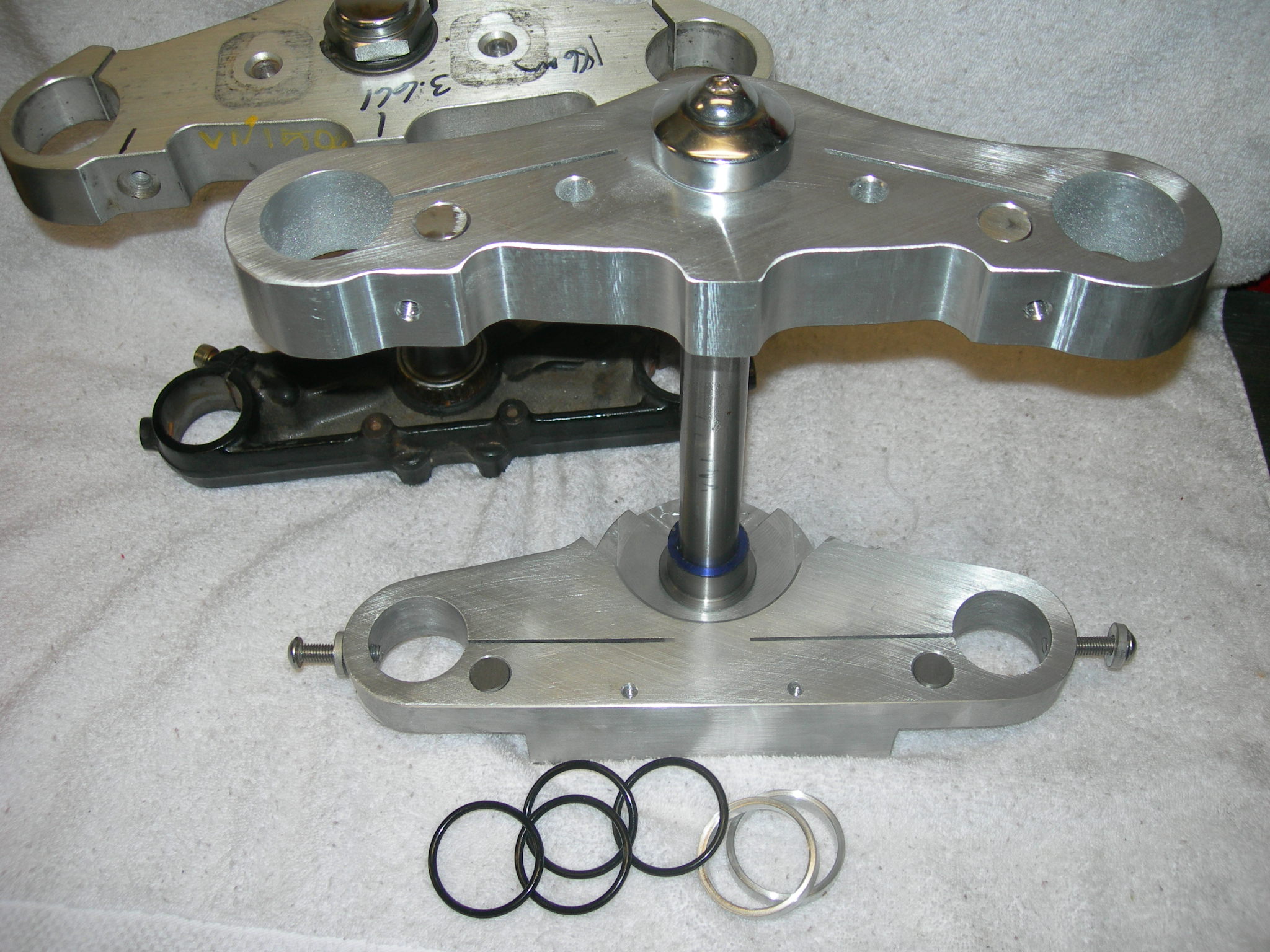

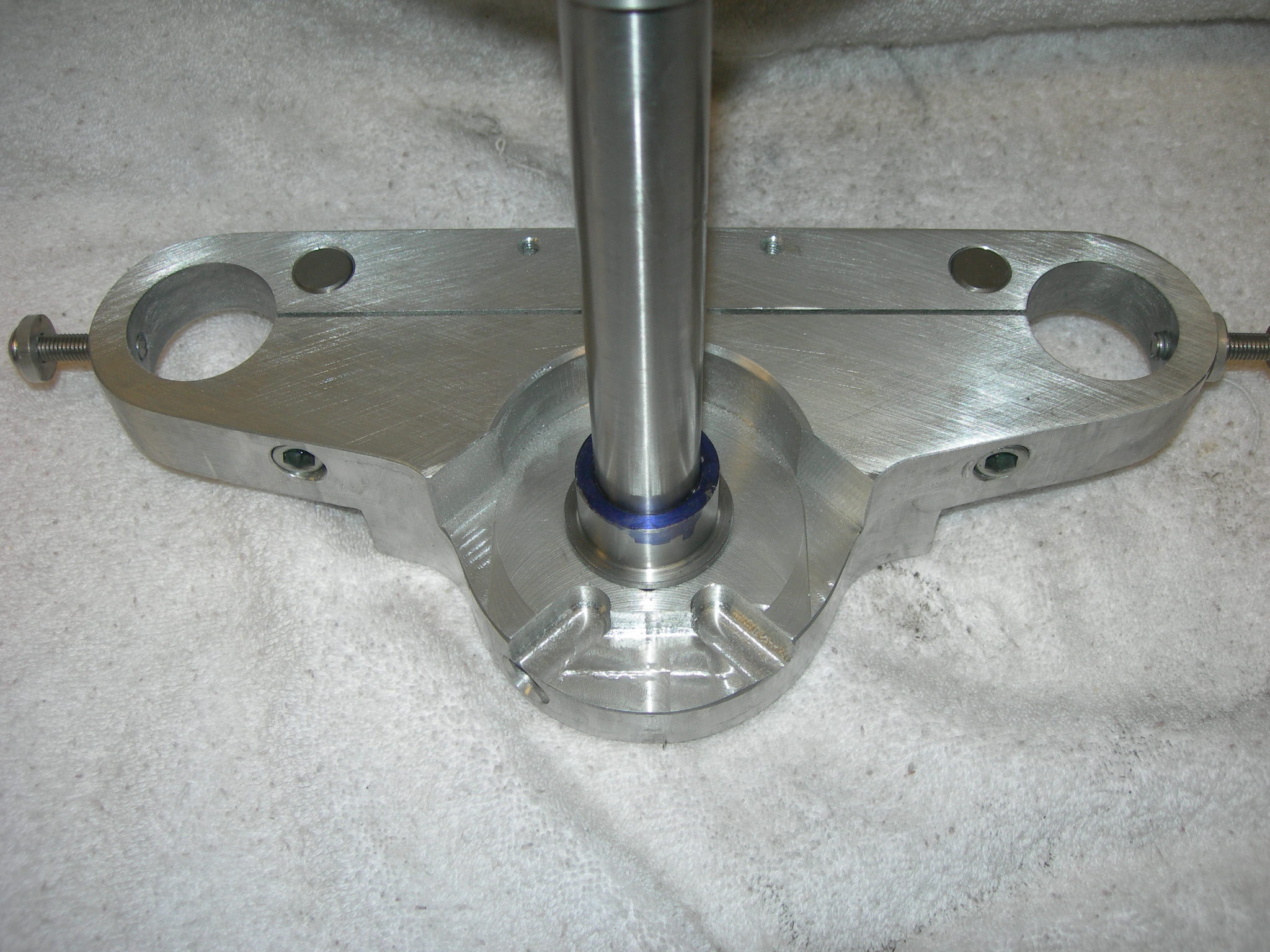

Kawasaki Vulcan Classic Custom Triple Trees - 2005 and later

This set has a 5 degree rake built in and incorporates the new fork stop and lock like its big brother the Vulcan Nomad.

Kawasaki Vulcan Classic Custom Triple Trees - 2004 and earlier

This set incorporates the early fork stops and lock design. A 5 degree rake is built into the set. This triple tree has been built to aid the steering in trike and side car applications.

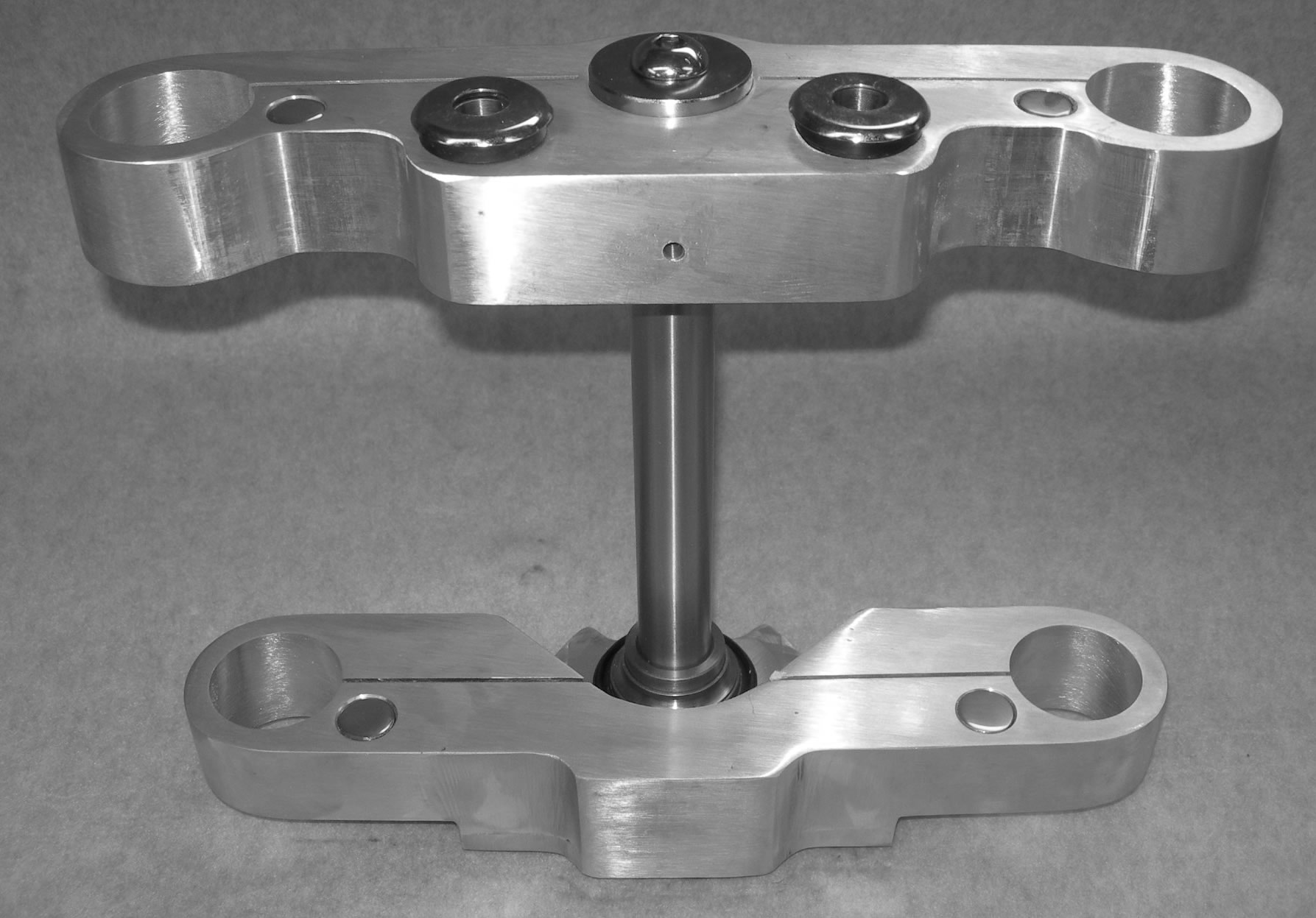

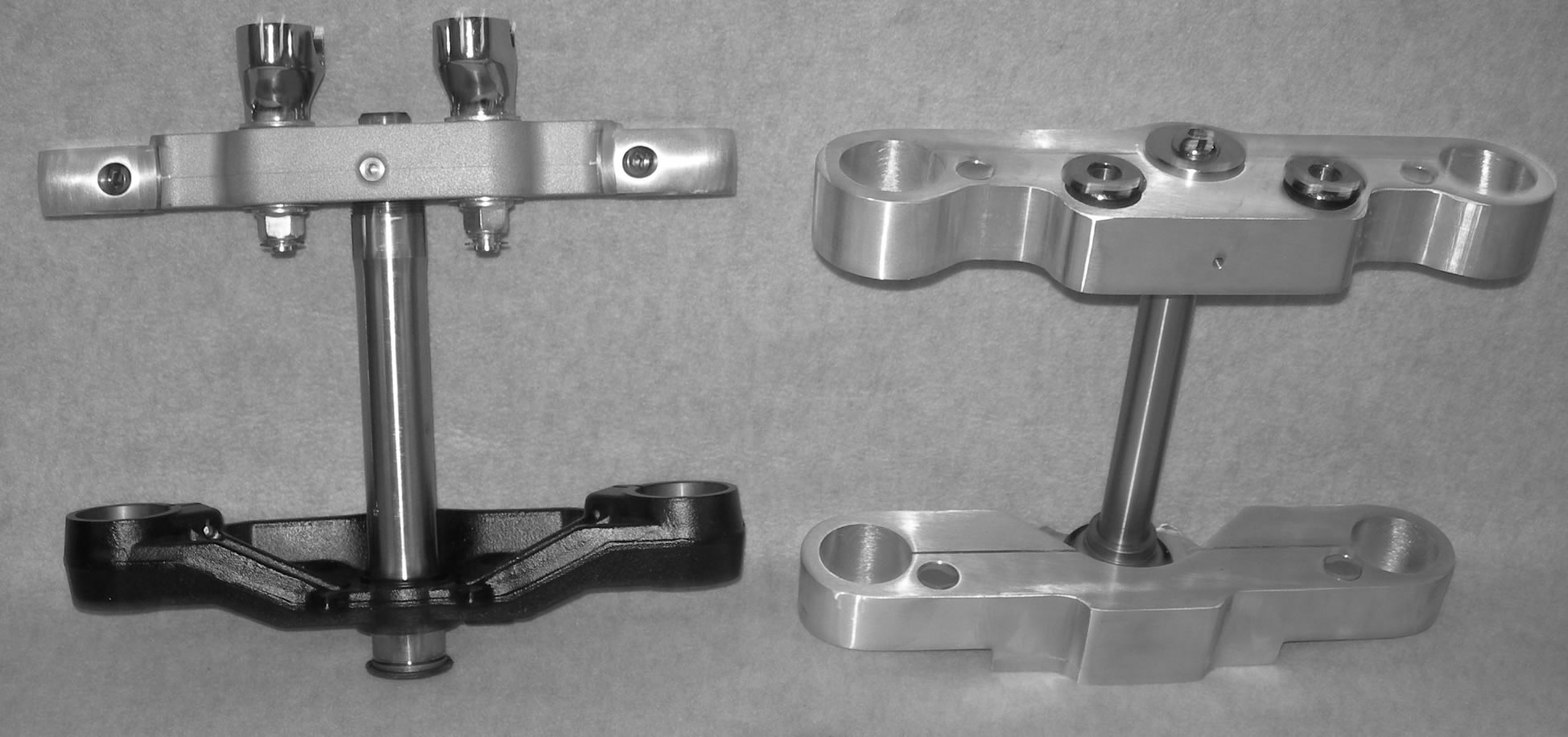

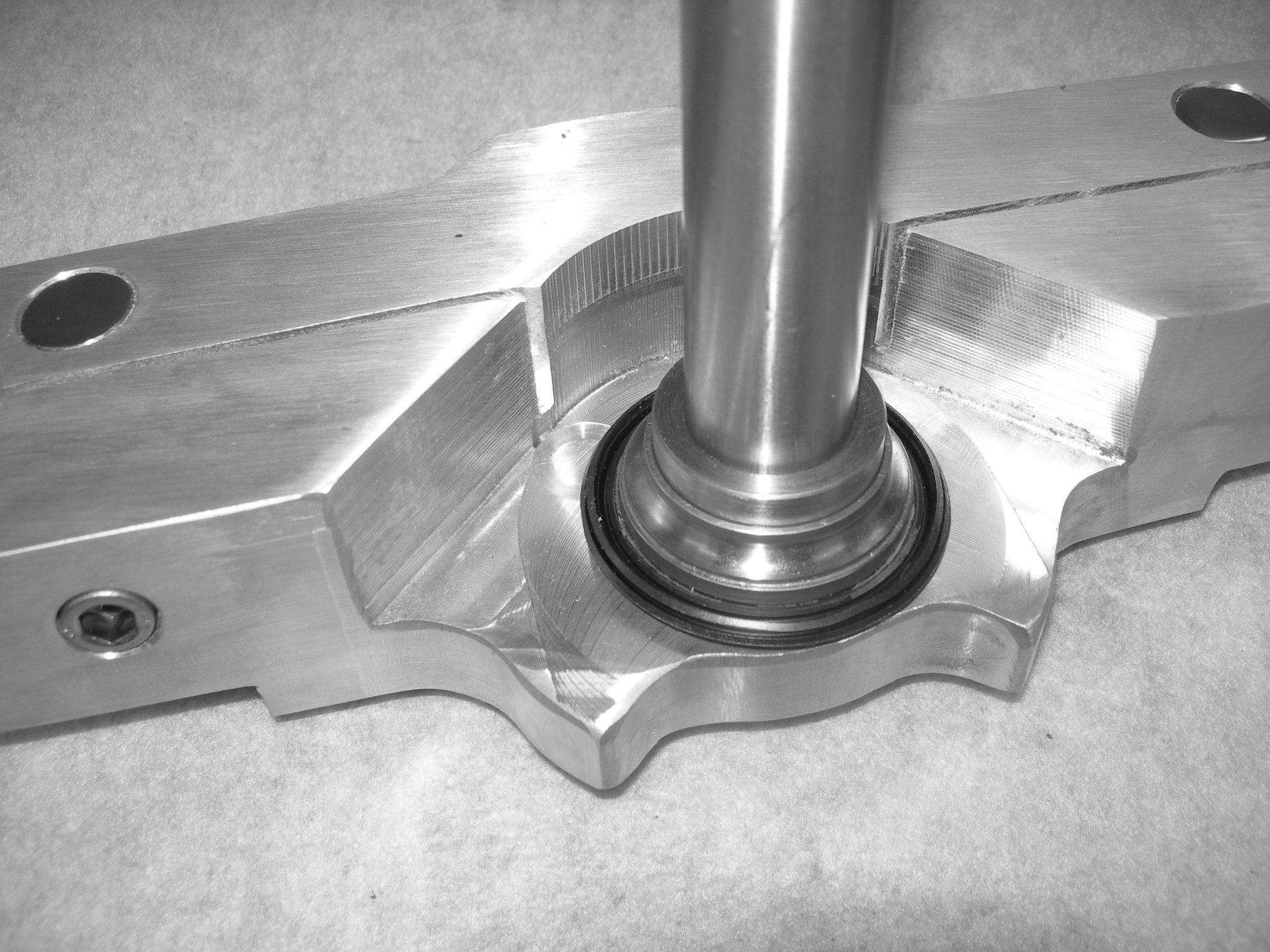

Kawasaki Voyager Custom Triple Trees
These sets work well in for customizing 2 wheeler or improved steering in Trike and Side Car applications.

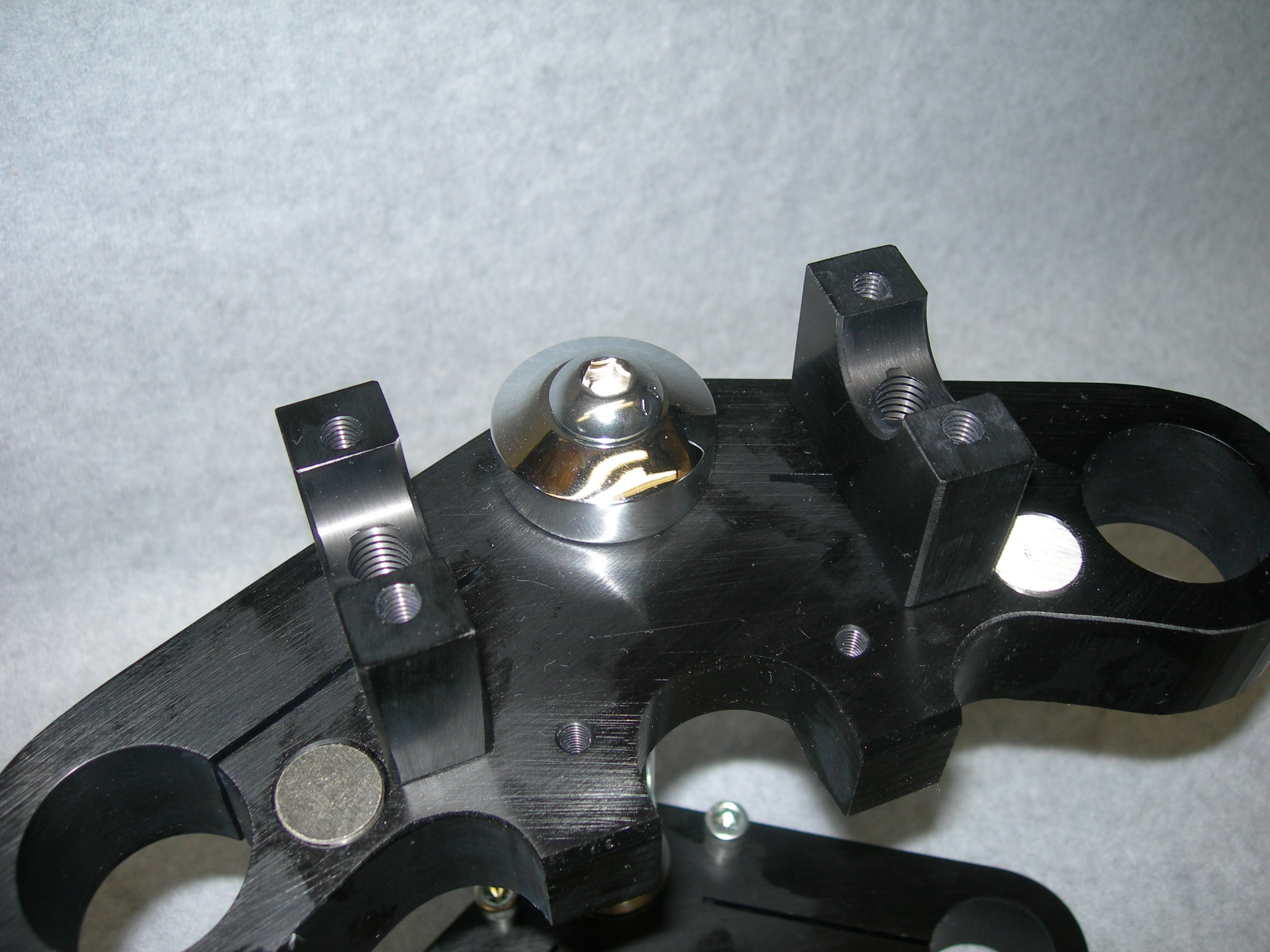

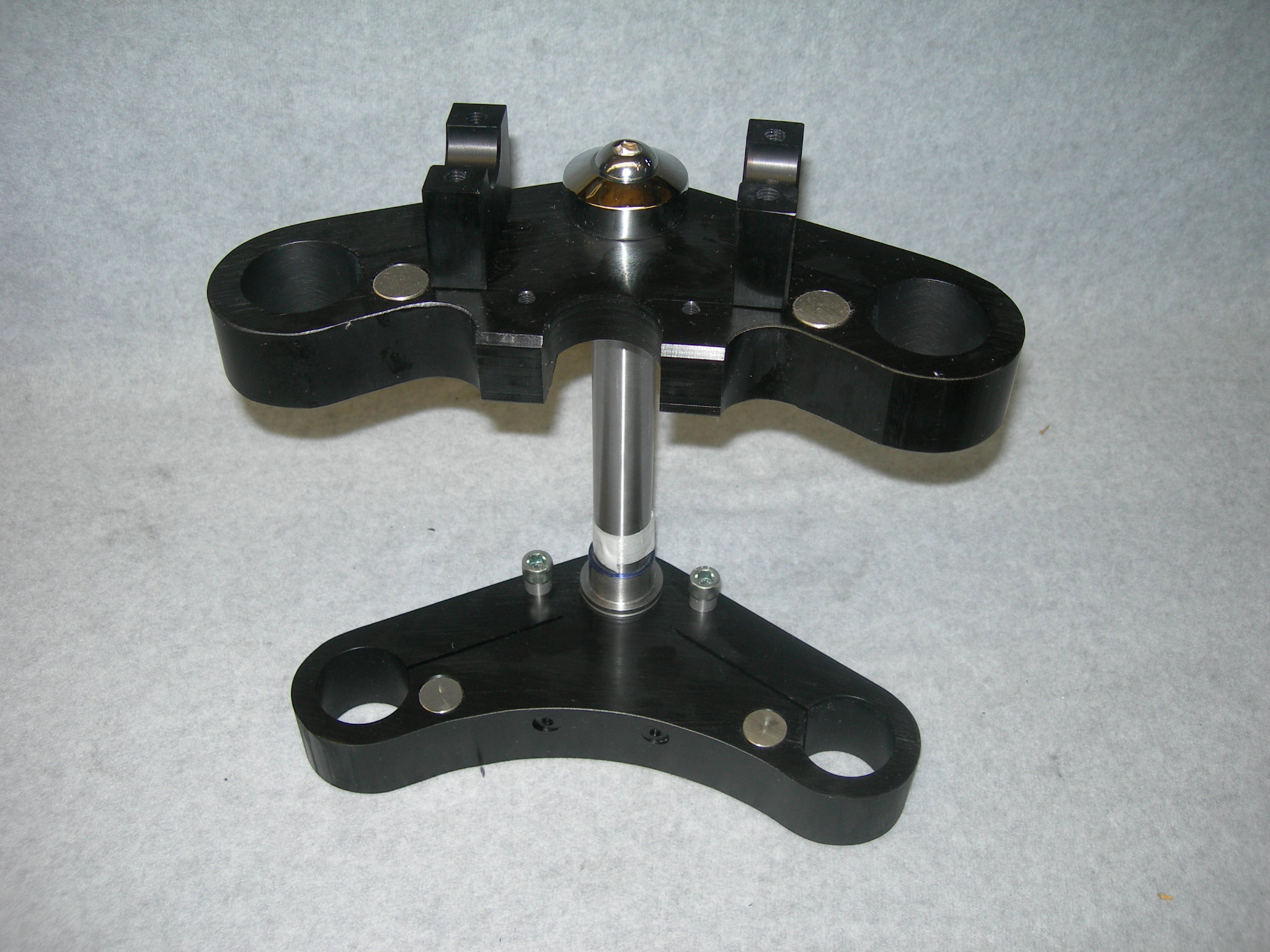

Kawasaki Voyager XII Custom Triple Trees

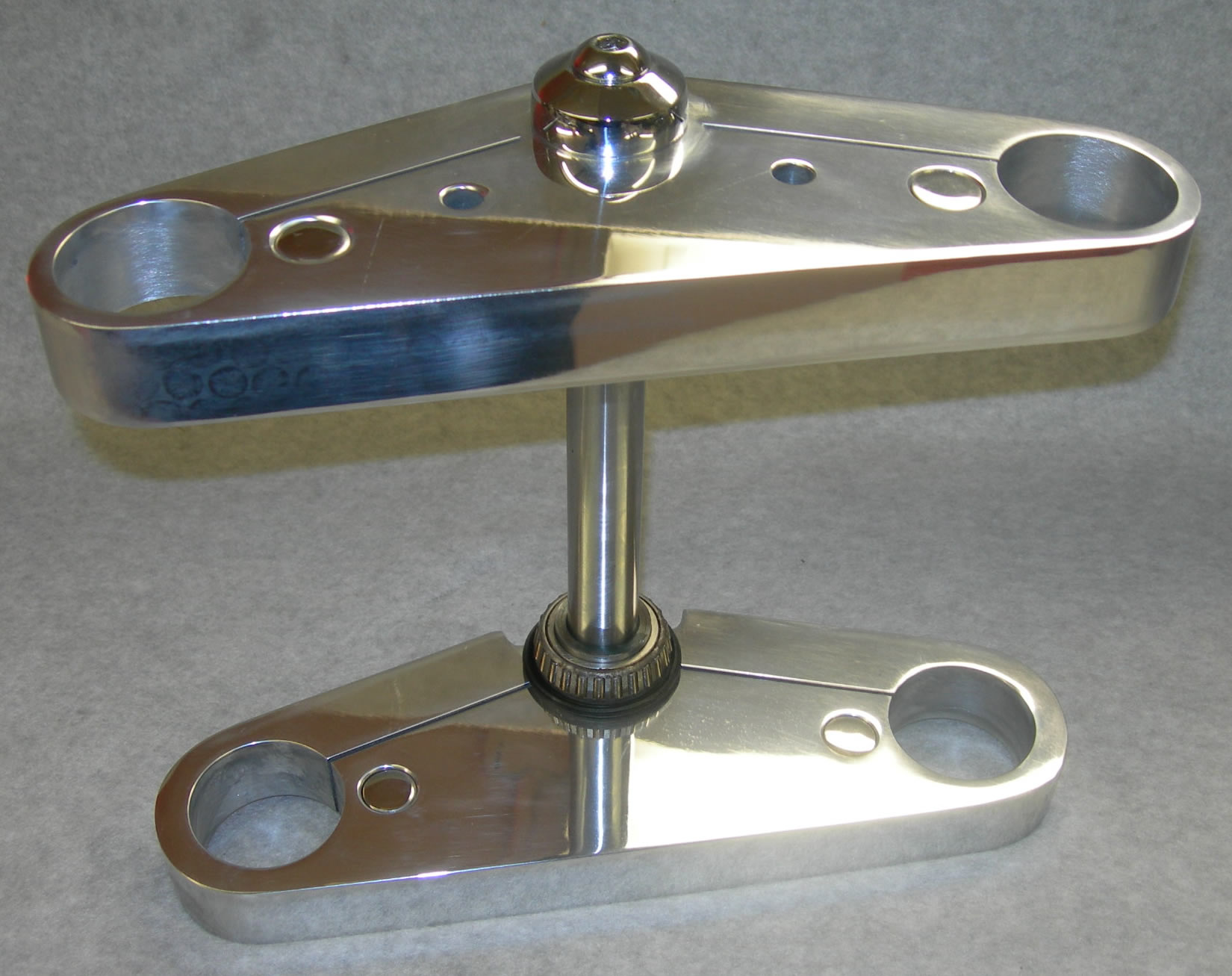

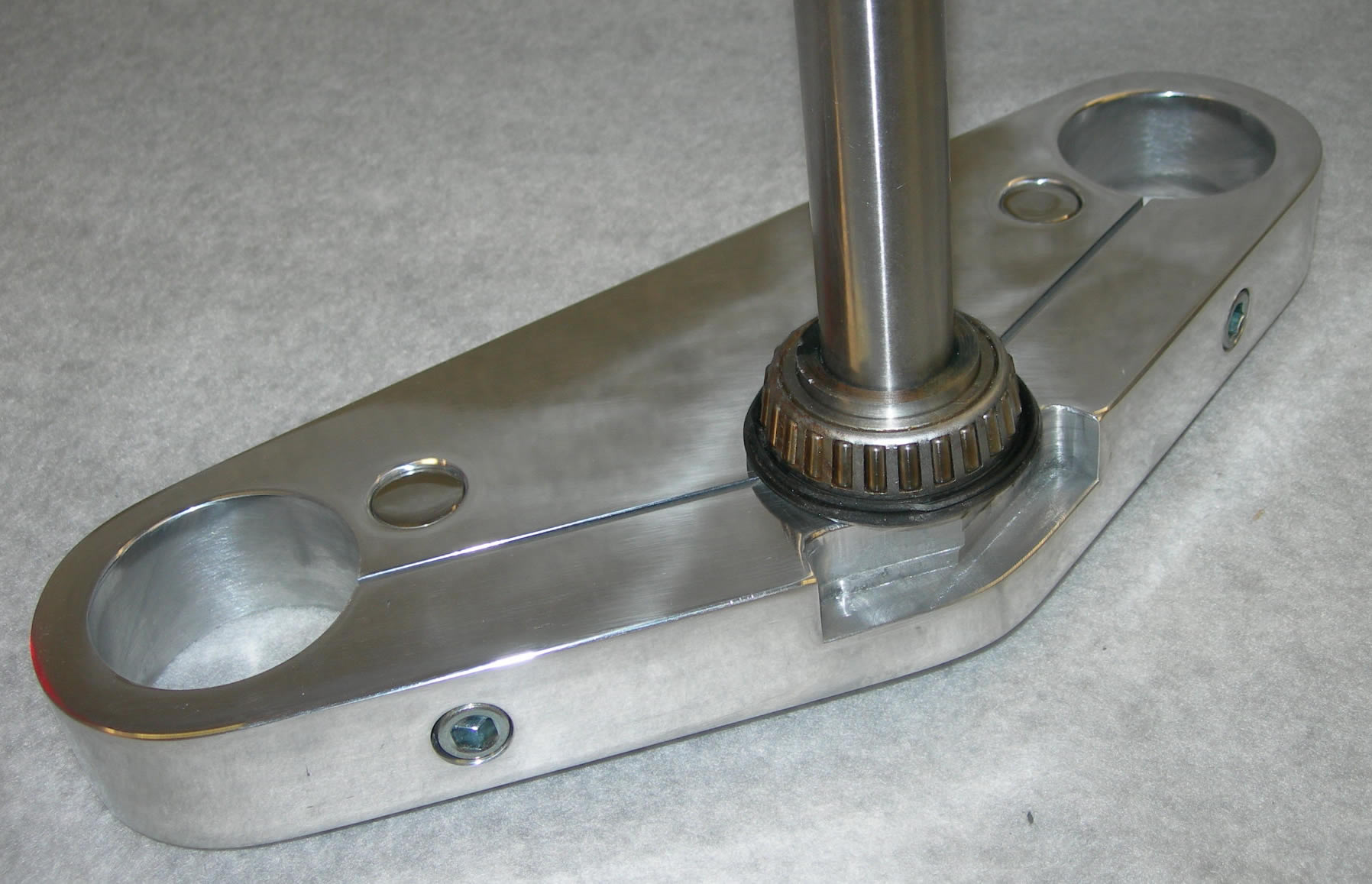

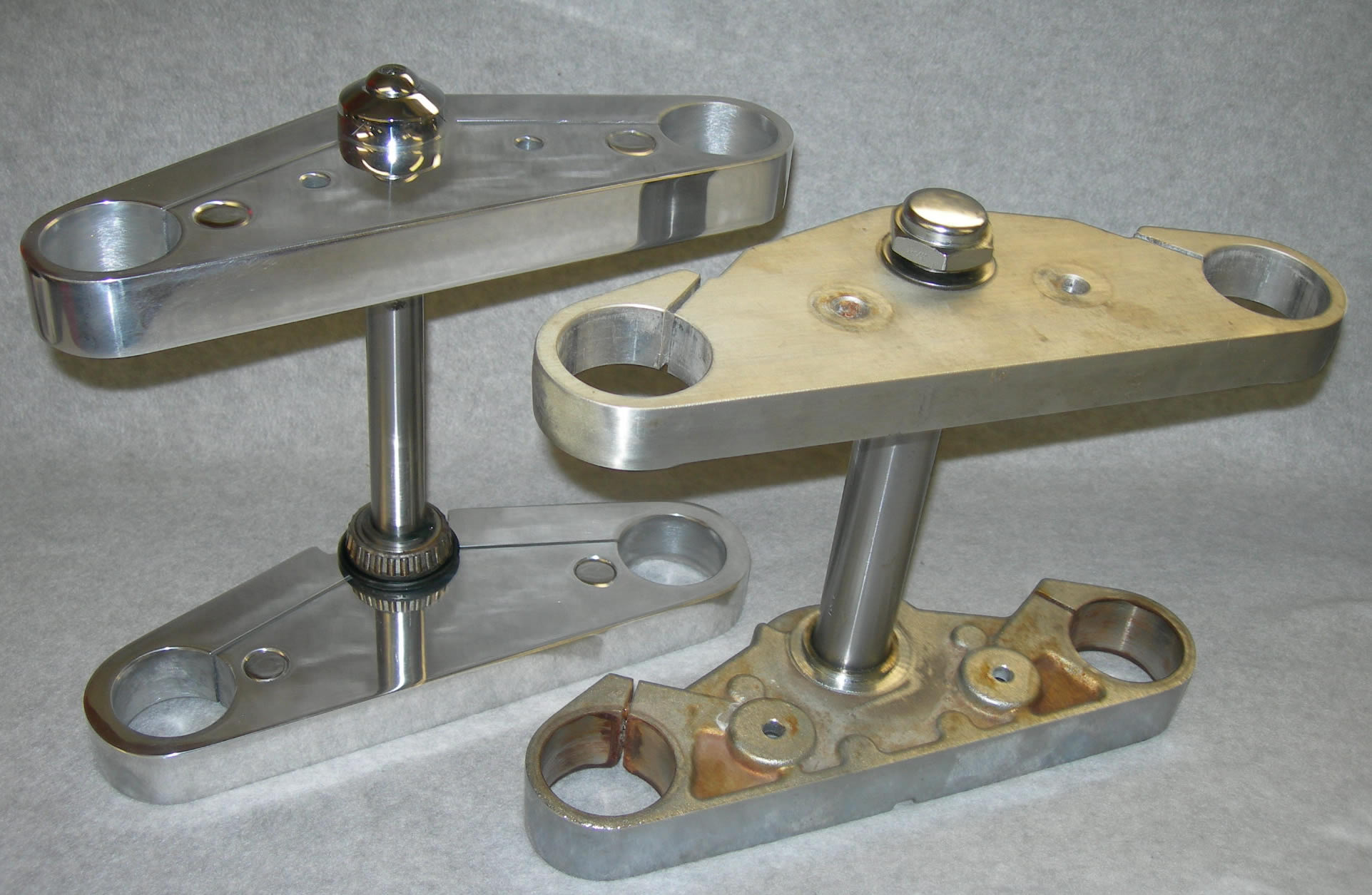

Kawasaki Meanstreak Custom Triple Trees

These trees feature a 50mm top tube diameter and a 54mm bottom diameter. Some of the mounting holes have been eliminated because the customer for this job requested a custom clean look to replace the aging stock triple trees. This is a standard tree set with no additional rake. This set is available with with all of the stock mounts in any of the 5 rake angles offered.

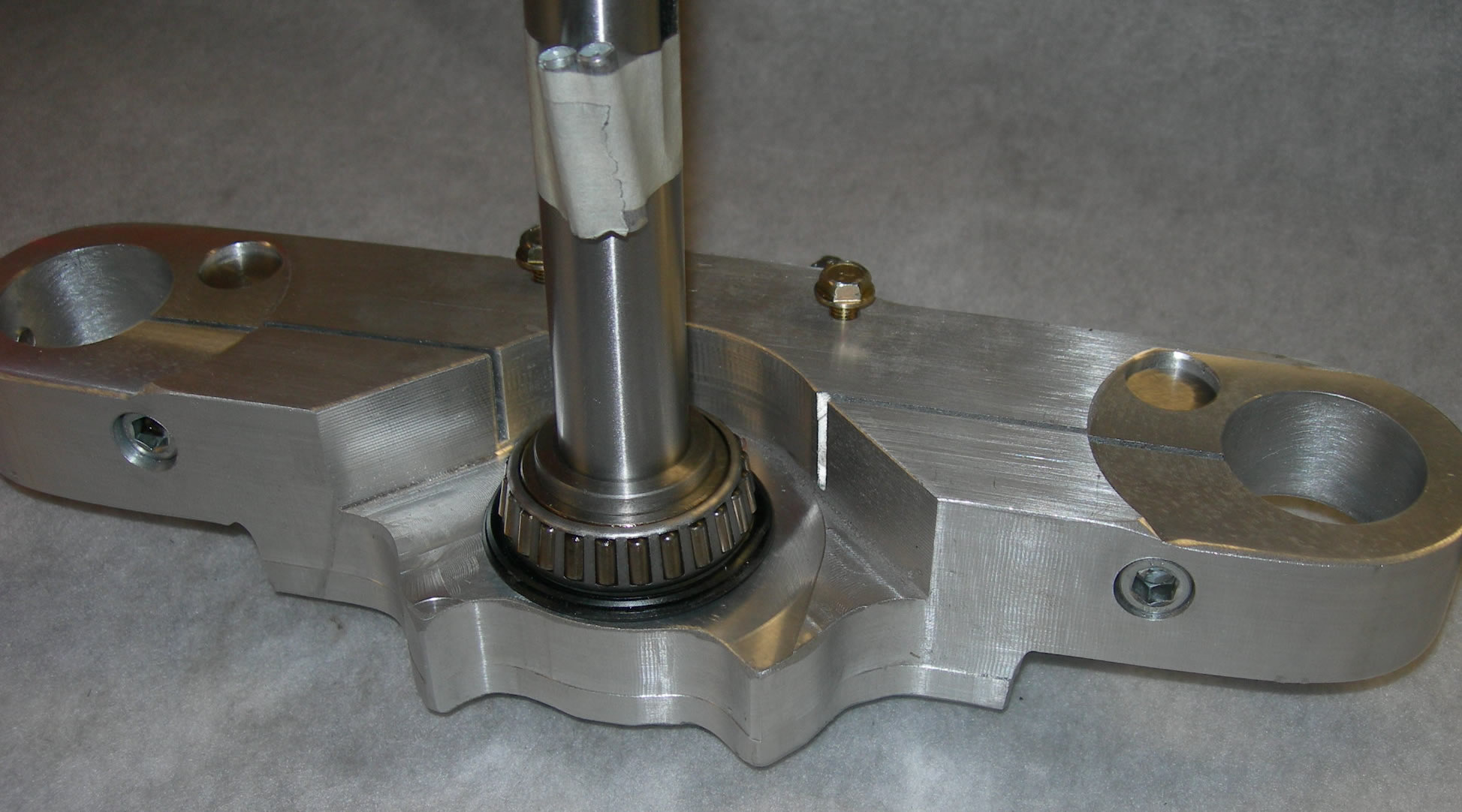

Kawasaki Vulcan Nomad Custom Triple Trees - 1999 and earlier

This model has a built in 5 degree rake with the stock 41mm tube and is 270mm wide.

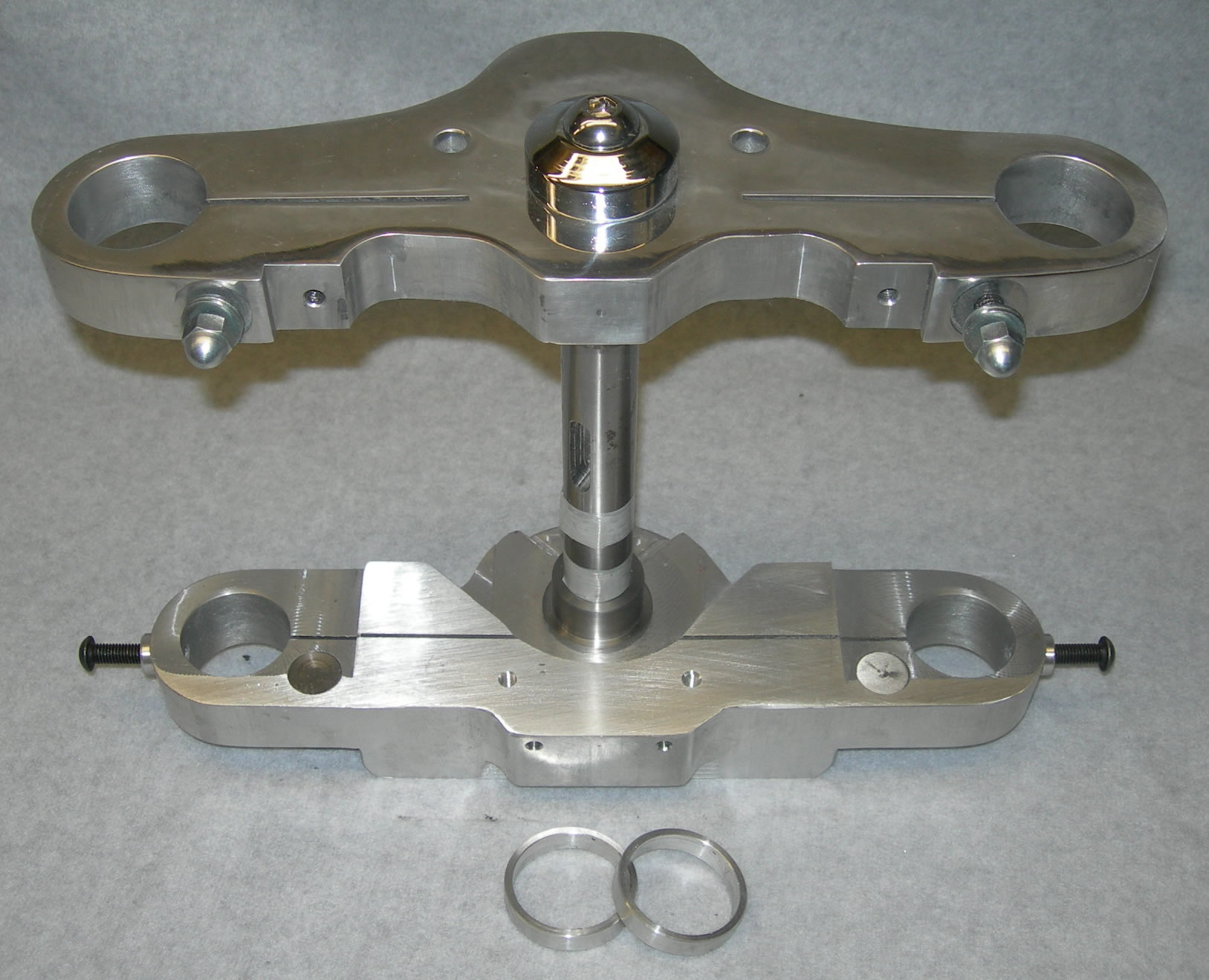

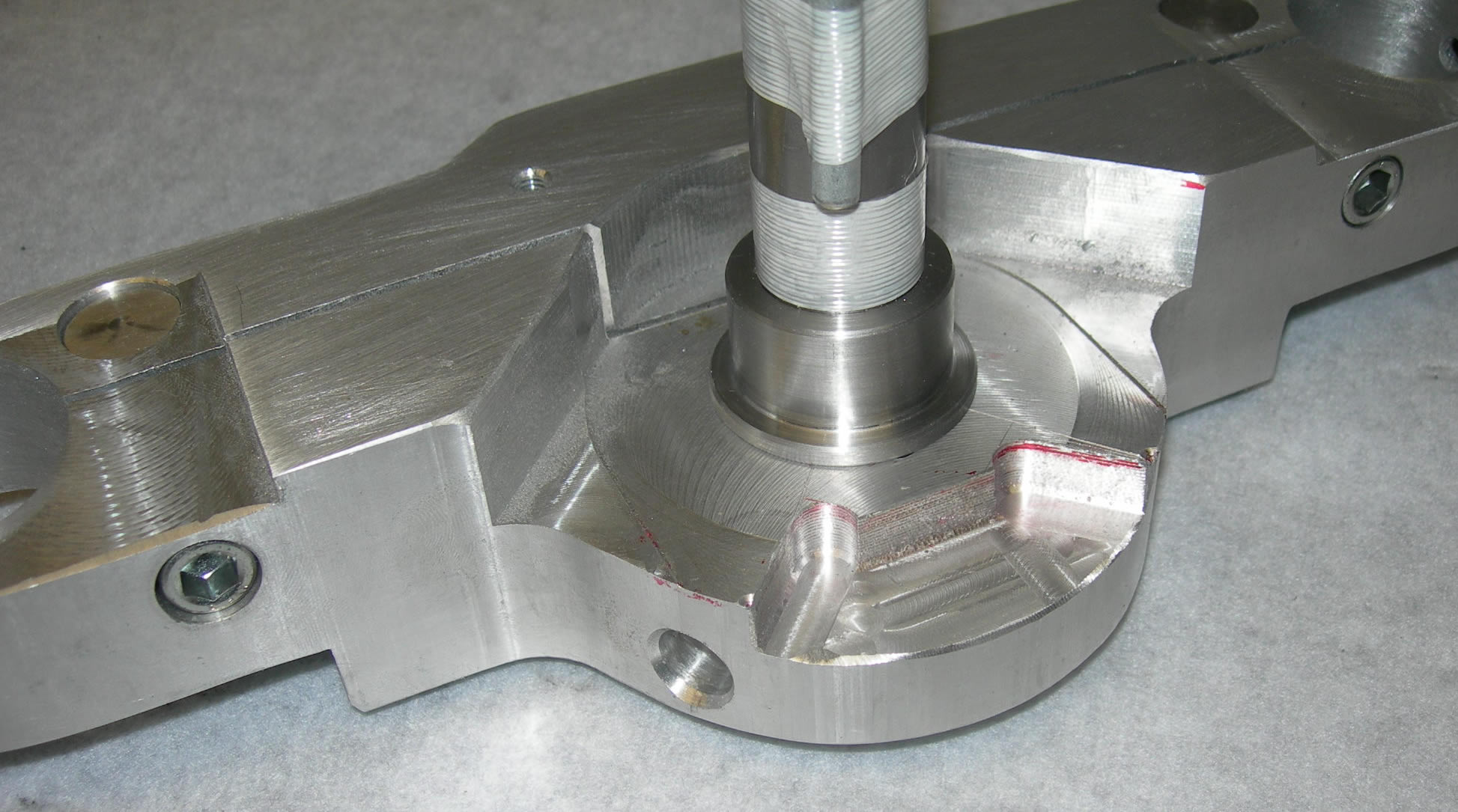

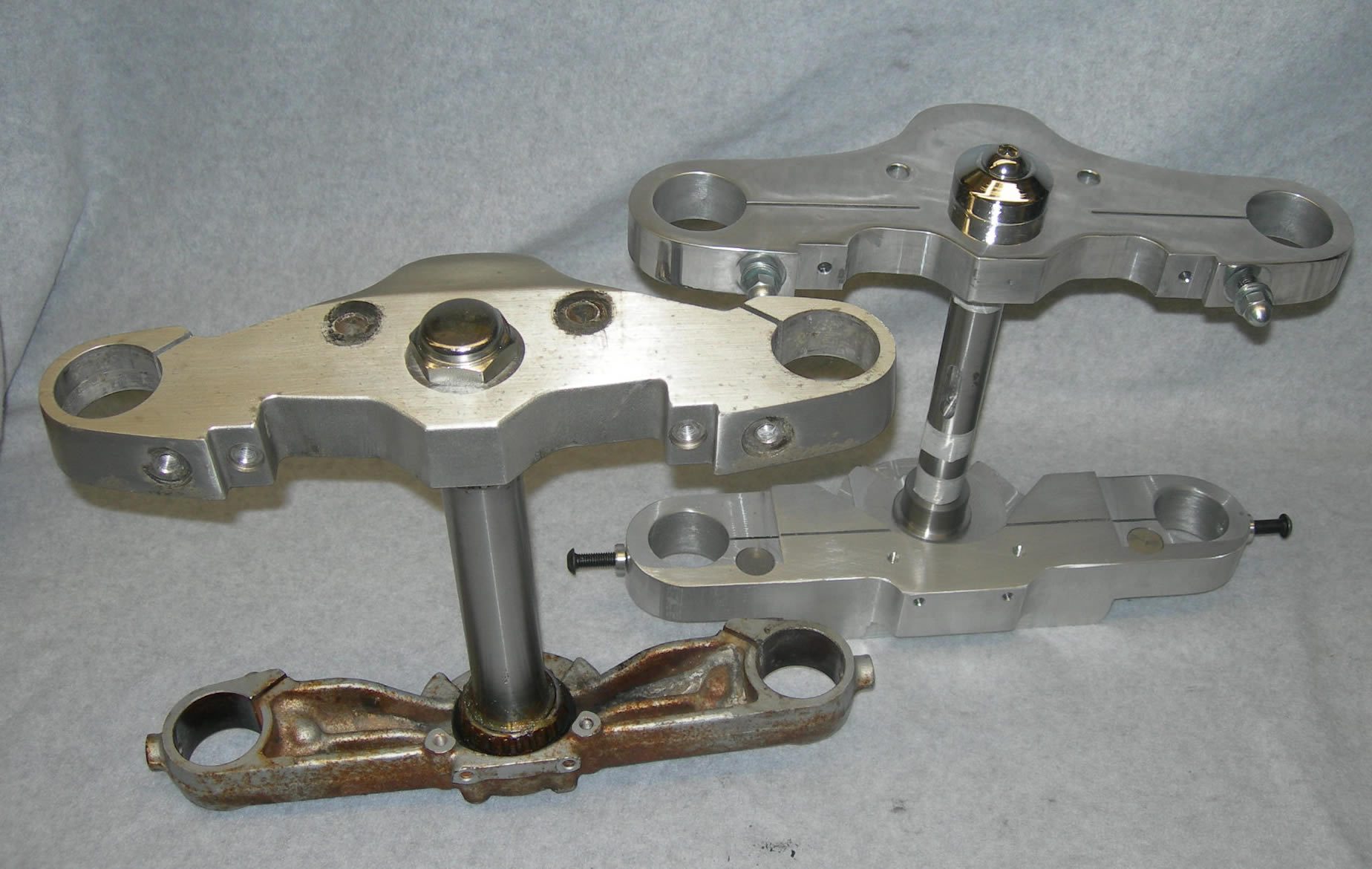

Kawasaki Vulcan Nomad Custom Triple Trees - 2000 and later

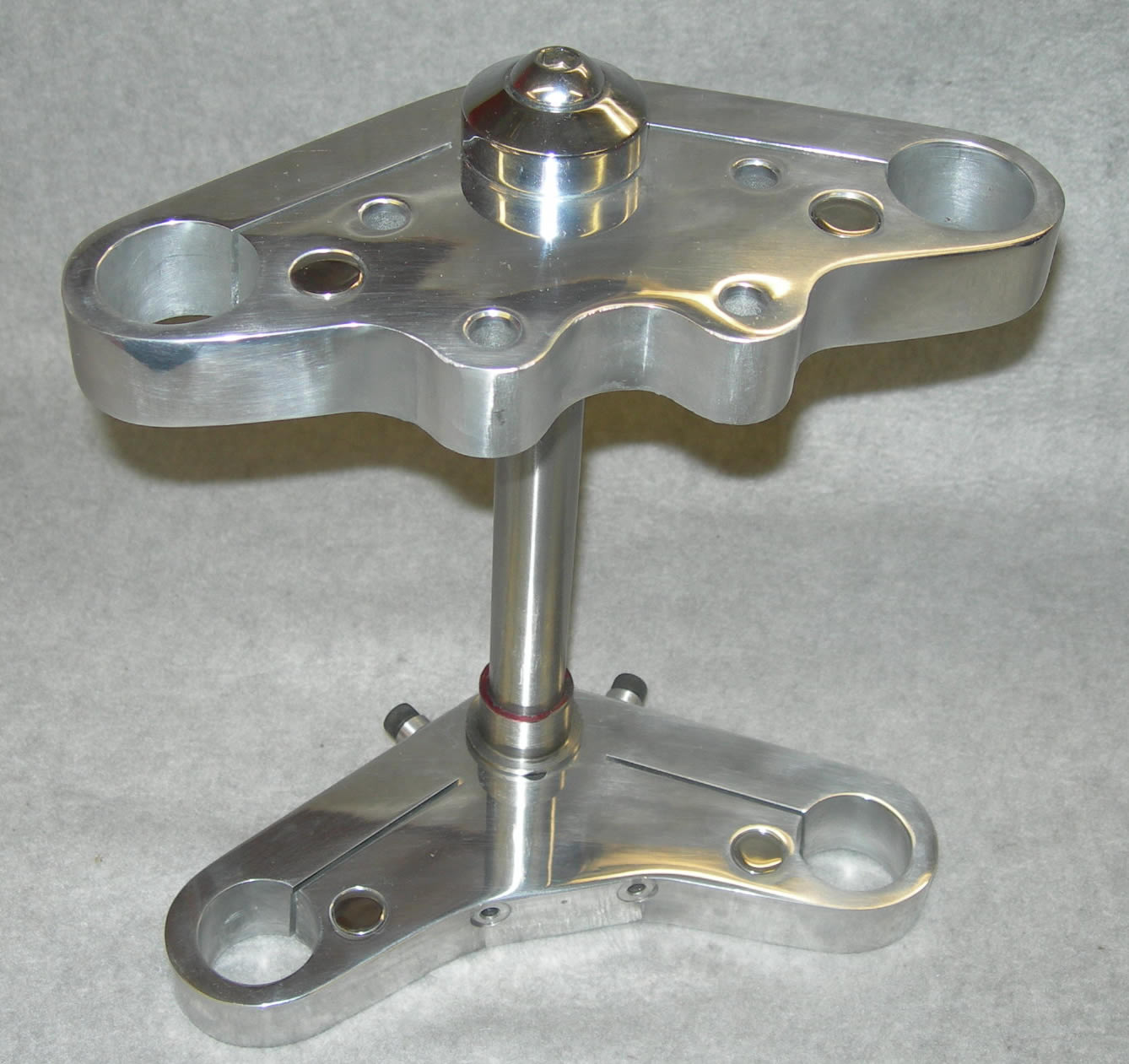

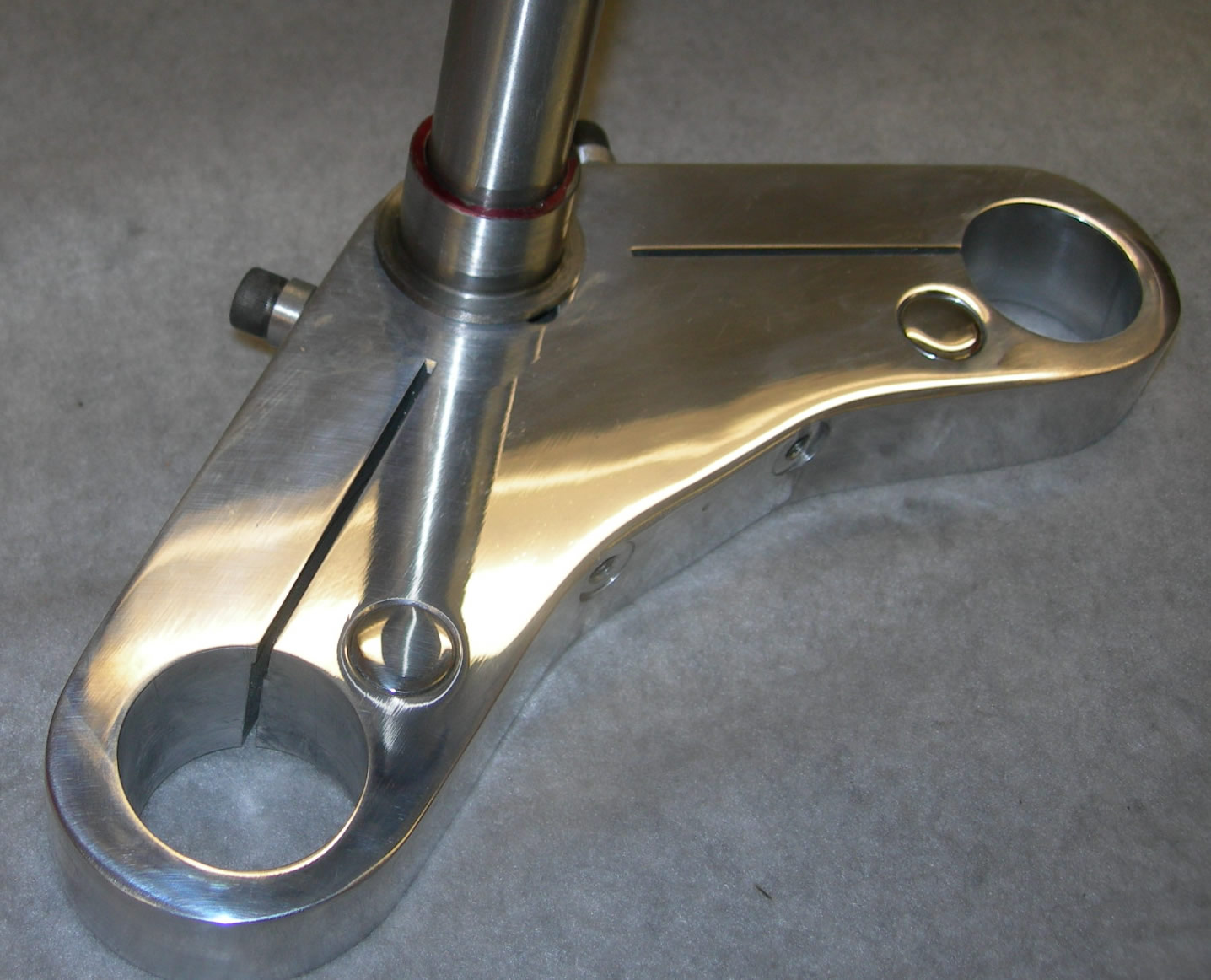

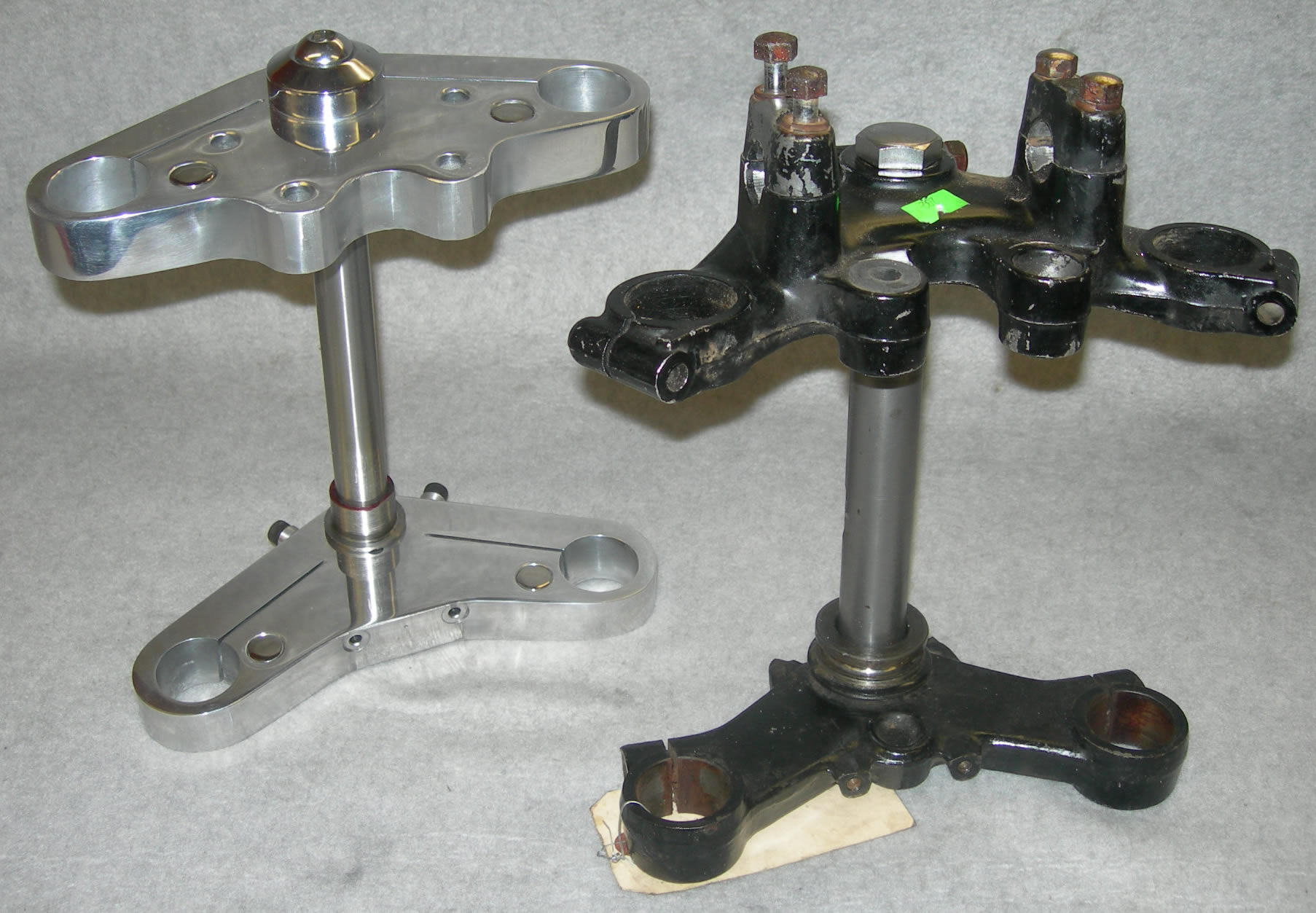

Kawasaki KZ 1000 Custom Triple Trees

For this job the stock handle bar riser blocks were replaced with through holes . This permits the mounting of Custom bar risers. The builder choose to run 1"dia. handle bars instead of the stock 7/8"size. This set has a small 2 1/2 degree rake built in .This creates enough clearance to run a larger diameter wheel. The set was polished for a clean custom look. We can build sets like tis for all the KZ models.

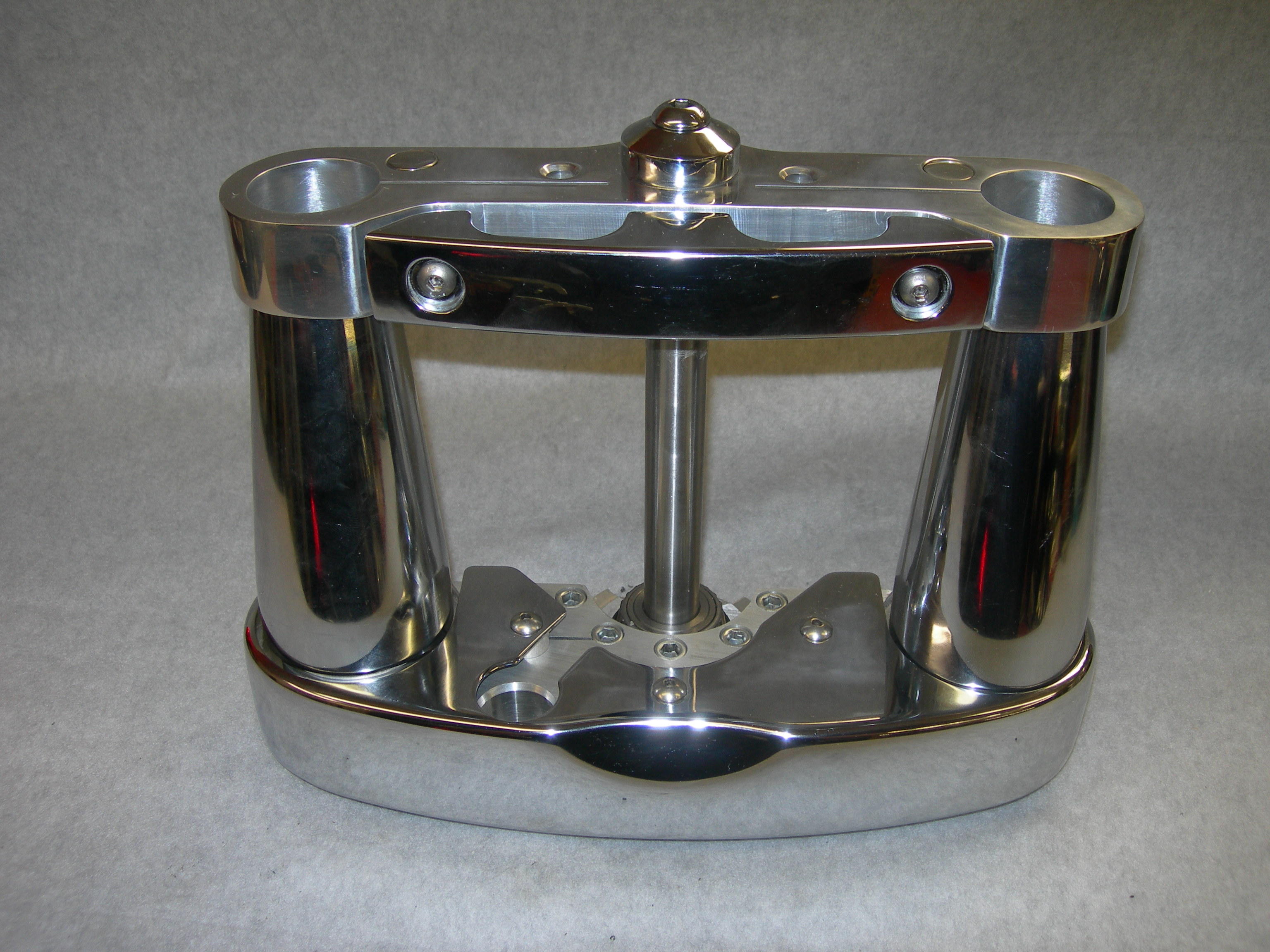

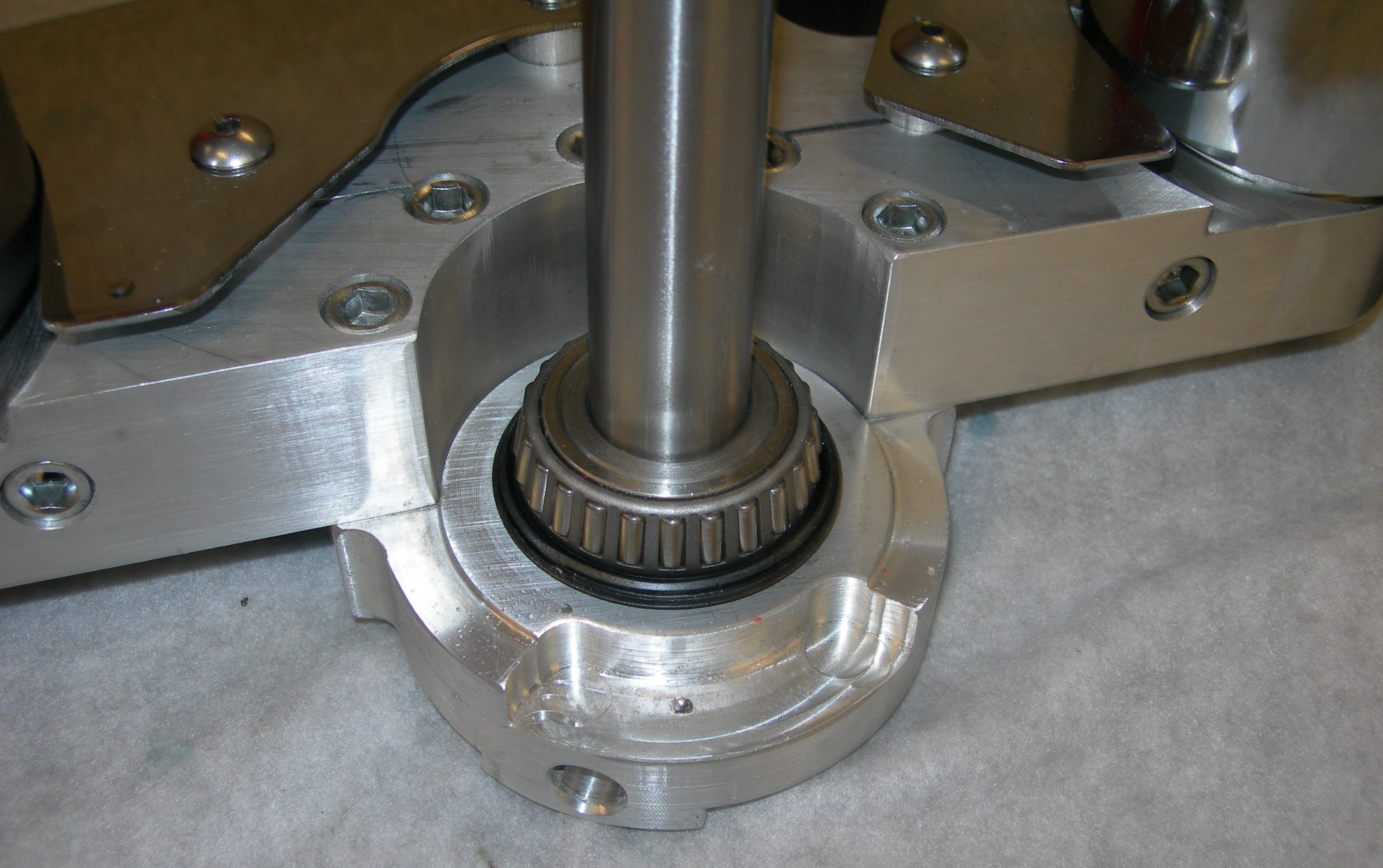

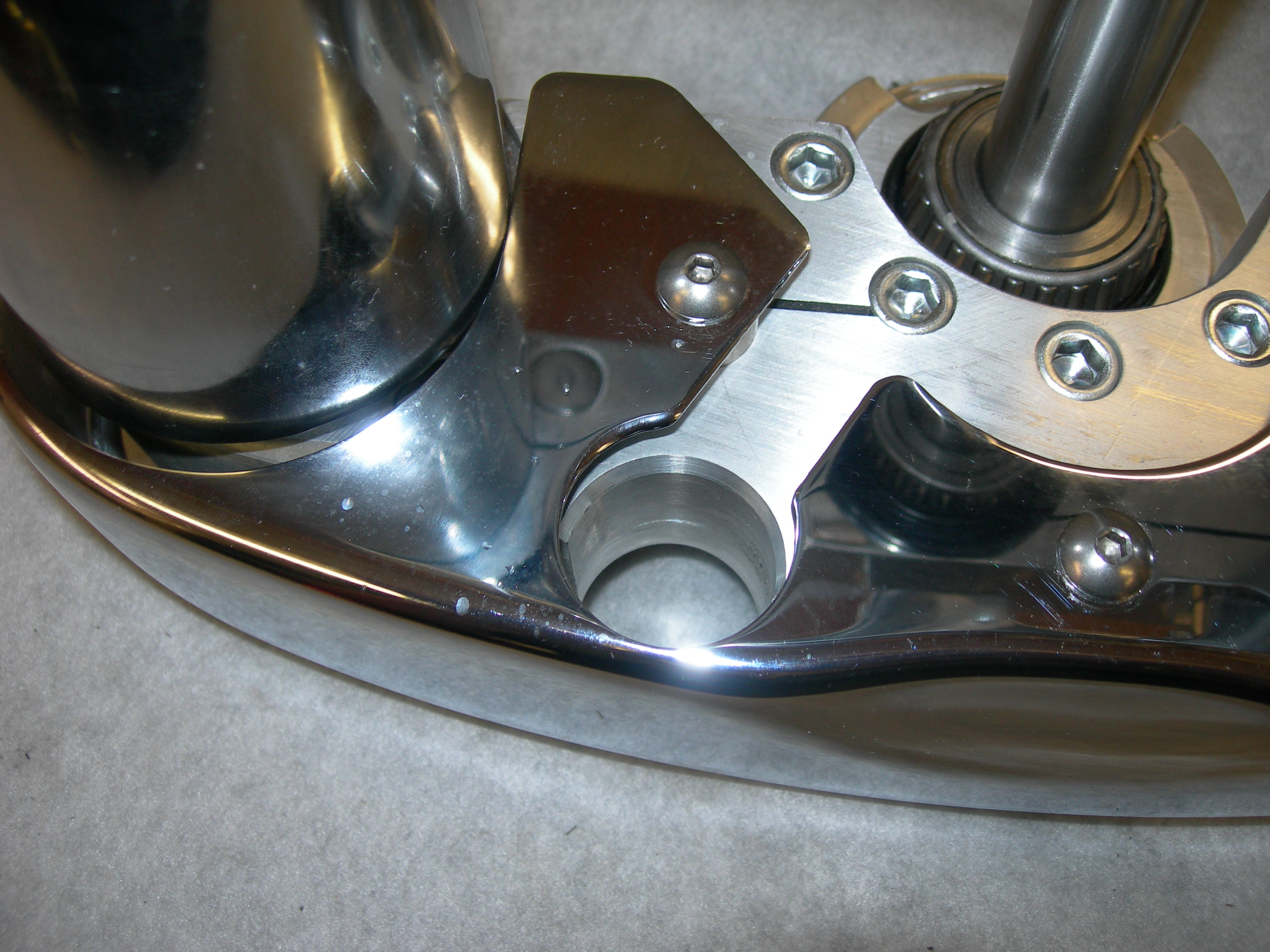

Kawasaki Vulcan Nomad 2000 Classic Custom Triple Trees

We build this set with a 6 1/4 degree rake built in. This is a heavy motorcycle with a cruising neck angle. To assist in Trike and Side Car steering , a greater amount of rake angle is required. This is a stock application set - all of the stock gauges, covers and ignition bolt back up.

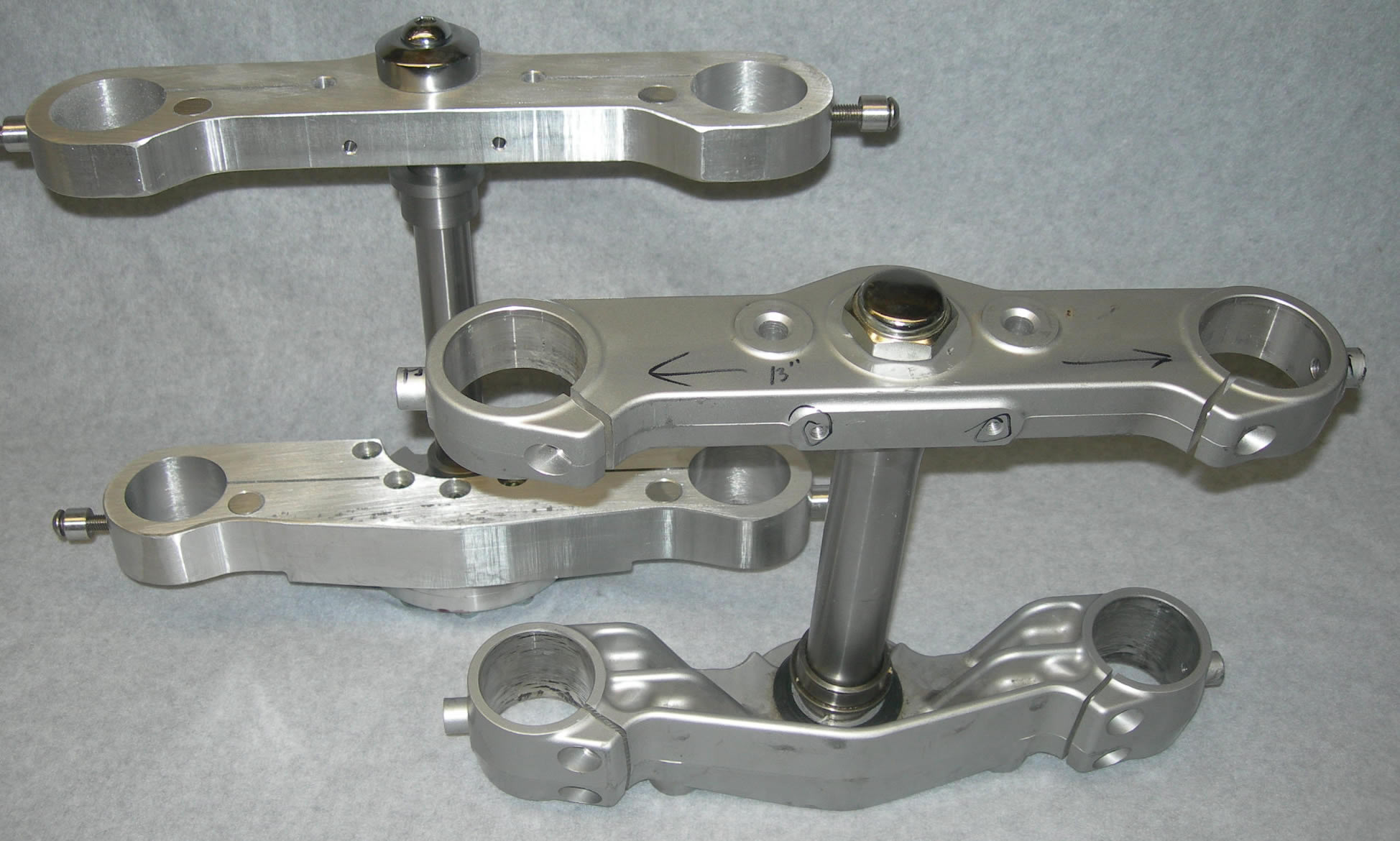

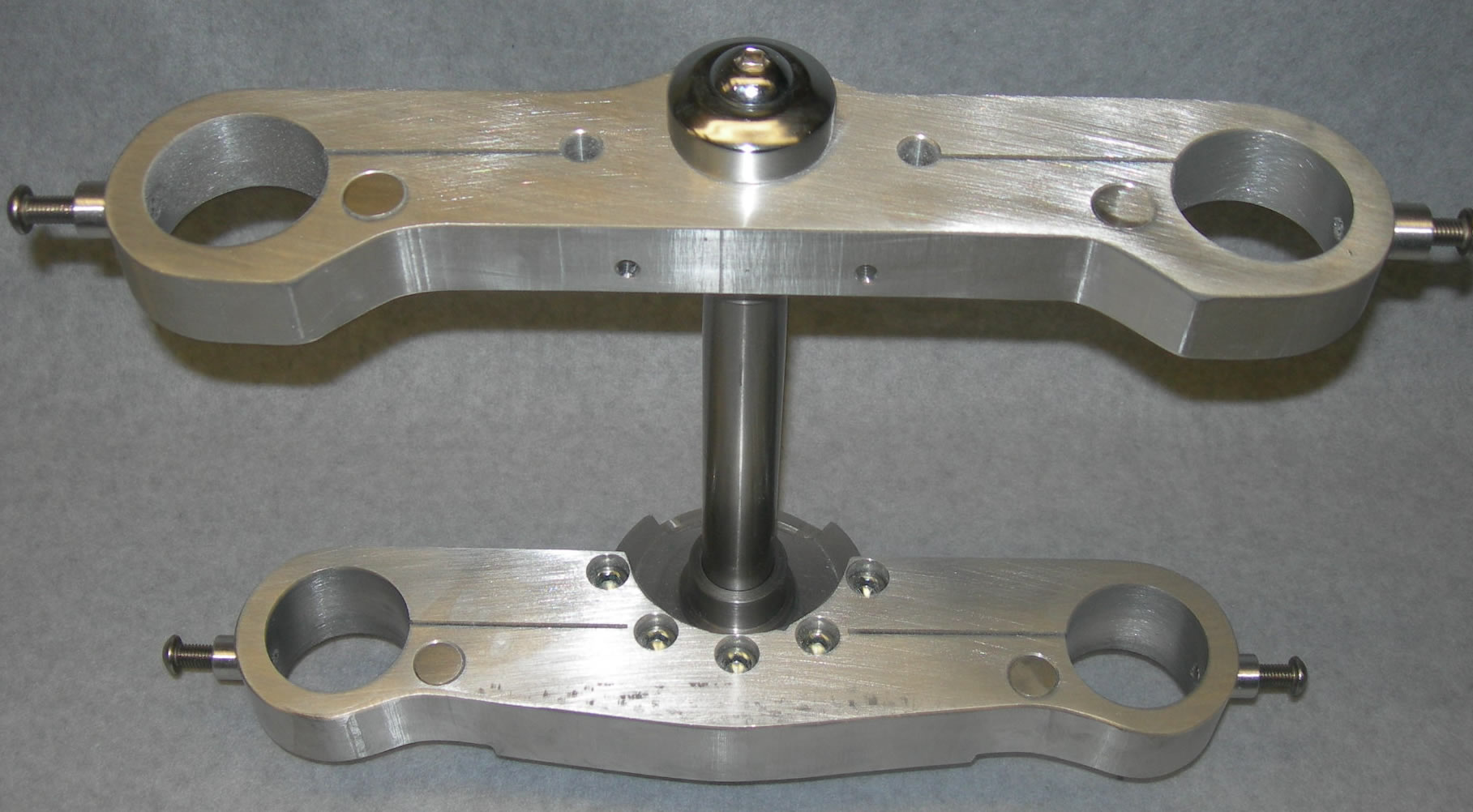

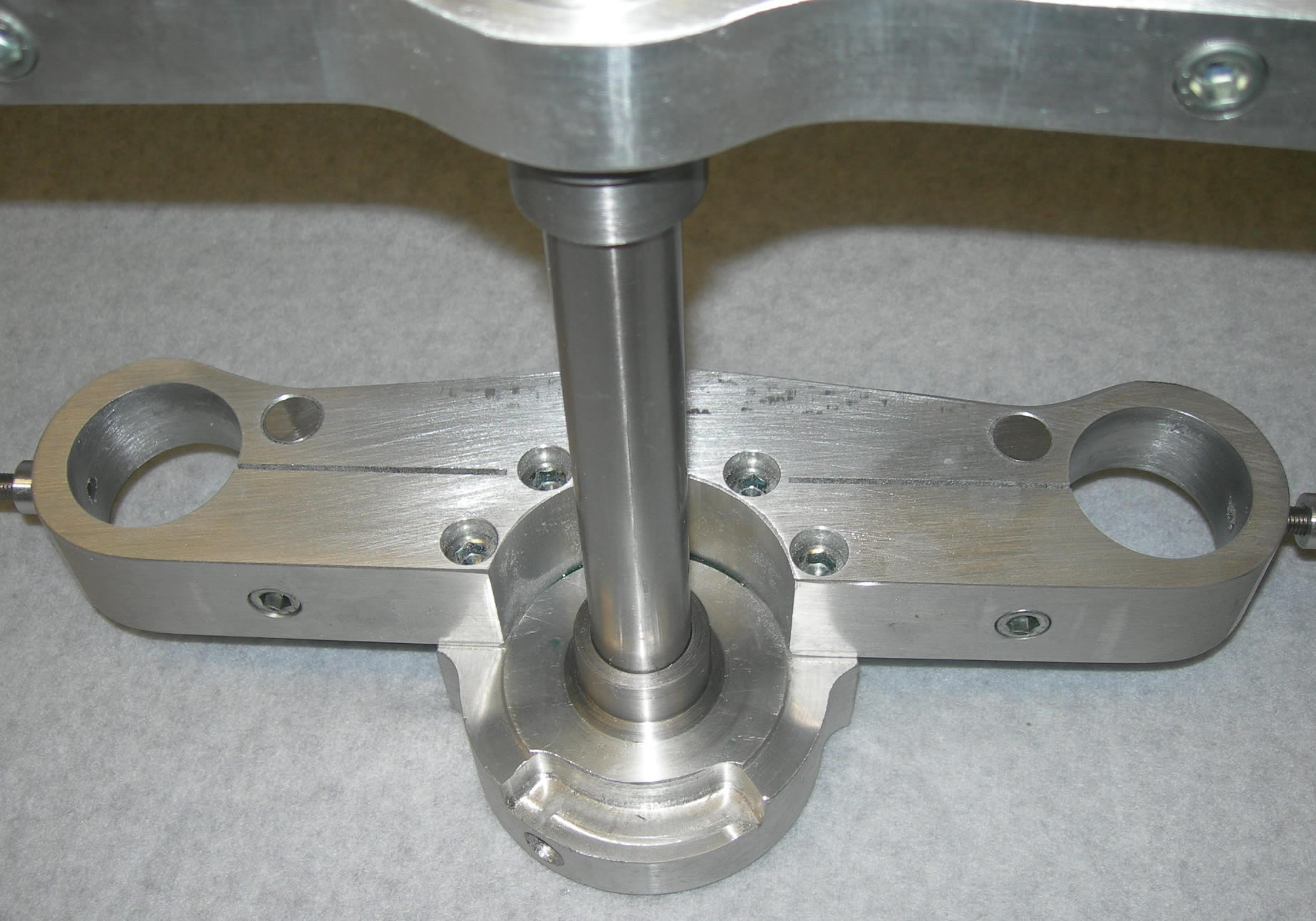

Kawasaki Vulcan Nomad 2000 A Standard Custom Triple Trees

This set, like the Classic has a 6 1/4 degree rake built in and all of the stock parts bolt back up.


Custom Triple Trees by Machine And Design
